YIMU PM50 Full-Automatic Cap Assembly Machine: High-Precision Packaging Solution
  • YIMU PM50 Full-Automatic Cap Assembly Machine: High-Precision Packaging Solution
YIMU PM50 Full-Automatic Cap Assembly Machine: High-Precision Packaging Solution

YIMU PM50 Full-Automatic Cap Assembly Machine: High-Precision Packaging Solution

Menşe yeri Şangay
Marka adı YIMU PACK
Sertifika CE
Model numarası PM50
Ürün Ayrıntıları
Vurgulamak:

full-automatic cap assembly machine

,

high-precision packaging solution

,

automatic labeling machine with warranty

Ödeme ve Gönderim Koşulları
Min sipariş miktarı
1
Ambalaj bilgileri
tahta sandık
Teslim süresi
20
Ödeme koşulları
D/A, D/P, T/T
Ürün Tanımı

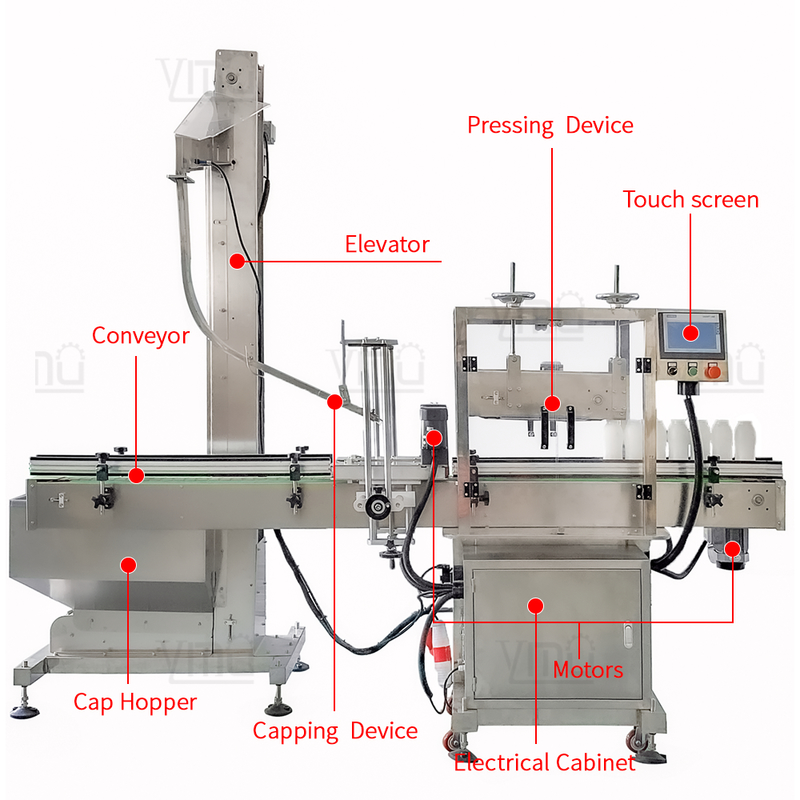

YIMU PM50 Full-Automatic Cap Assembly Machine: High-Precision Packaging Solution
1. Product Overview

The YIMU PM50 is a fully automated cap assembly system engineered to optimize bottle capping workflows across high-demand industries. By integrating advanced servo control technology and intelligent programming, it eradicates human-operated mistakes, lowers labor expenses, and guarantees consistent quality—making it an excellent choice for businesses aiming to boost production efficiency.

1.1 Core Value Proposition
Key Advantage Business Impact
Full automation (cap feeding → precise positioning → assembly execution) Takes the place of 4–6 manual workers; slashes annual labor costs by over 60%
±0.5mm assembly precision Reduces defective products to less than 0.1%; avoids losses caused by rework
Compatibility with multiple cap and bottle types Adapts to more than 80% of common cap and bottle models; no need for frequent equipment replacement
2-year warranty + global technical support Minimizes the risk of production downtime; ensures long-term production stability
1.2 Basic Specifications
Category Details
Product Name YIMU PM50 Full-Automatic Cap Assembly Machine (Compatible with Flip-Top and Screw Caps)
Brand/Model YIMU / PM50
Origin Shanghai, China
Power Electric (110V/220V/380V customizable; 50/60Hz)
Automation Level Fully automatic (no manual operation required)
Construction SS304 stainless steel (corrosion-resistant, compliant with GMP standards)
Dimensions & Weight 18007001600 mm; 320 kg (net weight)
Certifications CE, ISO 9001
2. Technical Parameters & Performance
2.1 Key Operational Metrics
Parameter Specification Practical Significance
Assembly Speed 30–120 caps per minute (adjustable) Suits small-batch test runs (30 caps/min) up to large-scale mass production (120 caps/min)
Alignment Accuracy ±0.5 mm Prevents cap damage, liquid leakage, or loose fitting—critical for liquid product packaging
Power Consumption 1.2 kW Energy-efficient; suitable for 24/7 non-stop operation
2.2 Cap & Bottle Compatibility
Type Range Application Examples
Caps Diameter: 15–50 mm
Types: Flip-top, screw, twist-off (plastic/light metal)		 Cosmetic lotion caps, beverage bottle caps, pharmaceutical twist-off caps
Bottles Diameter: 20–90 mm
Height: 70–320 mm
Materials: Plastic, glass
Shapes: Round, square, oval		 500ml glass beverage bottles, 100ml plastic cosmetic bottles, 250ml square pharmaceutical bottles
2.3 Conveyor & Control System
Component Features
Conveyor Speed: 0–18 m/min (synchronized with assembly process)
Width: 80–250 mm (adjustable)
Material: Anti-slip rubber belt (prevents bottle slipping during transport)
Control System PLC (Mitsubishi/SIEMENS) + touch screen
Supports multiple languages (English, Spanish, German, etc.)
Stores 50+ product recipes (one-click switching between different cap/bottle types)
3. Core Features & Technical Advantages
  • Combines automatic cap feeding, precise positioning, and torque-controlled assembly into a seamless, integrated process.
  • Wipes out manual handling errors (such as misalignment and over-tightening) that account for 90% of capping defects in manual production lines.
  • Equipped with a servo motor and torque sensor to realize real-time adjustment of assembly force.
  • Maintains consistent cap-bottle alignment (±0.5mm) even for irregularly shaped bottles (e.g., square cosmetic containers).
  • SS304 stainless steel frame resists rust and chemical corrosion, making it ideal for food, pharmaceutical, and daily chemical industries.
  • Smooth, easy-to-clean surfaces meet GMP, FDA, and EU hygiene standards.
  • Touch screen interface allows one-click parameter adjustment—no professional technical skills required.
  • Features fault self-diagnosis alerts for cap shortage, bottle jams, or alignment errors—reducing downtime by 70% compared to traditional machines.
4. Industry Applications

The PM50 is trusted by more than 500 manufacturers across various sectors:

Industry Use Case Customer Feedback
Food & Beverage 38mm screw caps for juice bottles (100,000+ units per day) "Reduced defective rates from 3% to 0.05% within 3 months." — Leading fruit juice brand
Pharmaceuticals Twist-off caps for syrup bottles (GMP-certified production lines) "Complies with strict hygiene standards; easy to clean between production batches." — Pharmaceutical manufacturer
Cosmetics Flip-top caps for lotion bottles (multiple sizes: 24mm–45mm) "Quick recipe switching enables us to produce 5+ SKUs on a single line." — Cosmetics OEM
5. Packaging, Delivery & Customization
5.1 Packaging & Shipping
Detail Specification
Packaging Export-grade wooden crate (shock-proof, moisture-proof)
Package Size 19080170 cm
Gross Weight 380 kg
Lead Time 1–3 sets: 20 days
>3 sets: Negotiable
5.2 Customization Services
Service Details MOQ
Logo Customization Brand logo printing on machine body/control panel 1 set
Packaging Design Tailored wooden cases with brand marks or handling instructions 1 set
Functional Adjustments Modifications for special caps (e.g., large-diameter flip-tops, metal screw caps) Negotiable
6. About YIMU Machinery

Founded in 2016, YIMU is a verified custom manufacturer specializing in packaging automation solutions:

Strength Details
Production Capacity 888㎡ factory with 3 assembly lines; every machine undergoes 72-hour continuous operation testing
Quality Control Raw material inspection → semi-finished product testing → final performance verification
Global Reach Exported to over 60 countries (U.S., Europe, Southeast Asia); 94.4% positive customer reviews
Value-Added Services Free pre-sales production line layout consultation; on-site technical support for bulk orders
